Key Features |
● Interlock System: Mechanical or electronic double-door interlock prevents simultaneous door opening.
● Smooth Finish: Interior and exterior made of SUS304 stainless steel, resistant to chemical corrosion.
● UV Sterilization Option: Built-in UV lamp ensures additional microbial control during transfer.
● Air Purified Pass Box: Optional built-in HEPA system for maintaining internal cleanliness.

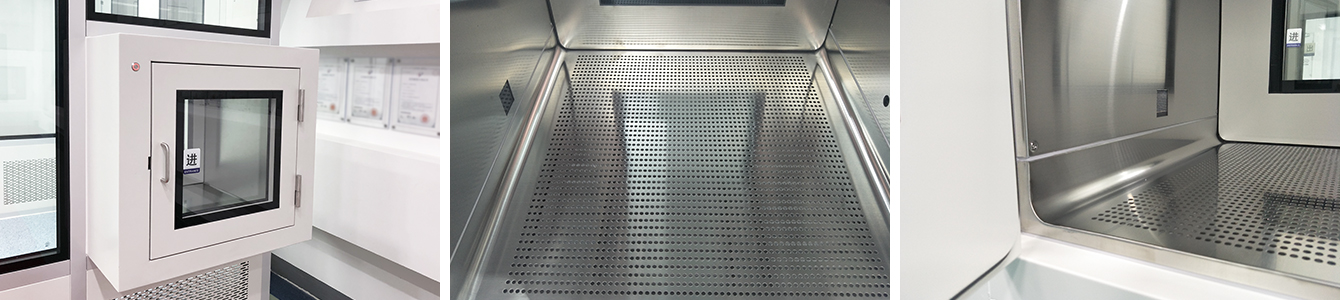

● Seamless Design: Rounded corners for easy cleaning and reduced particle buildup.
Available Types |

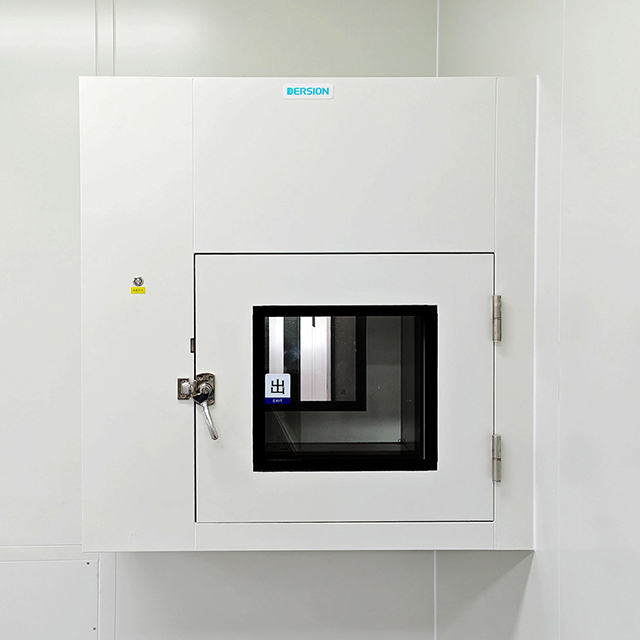

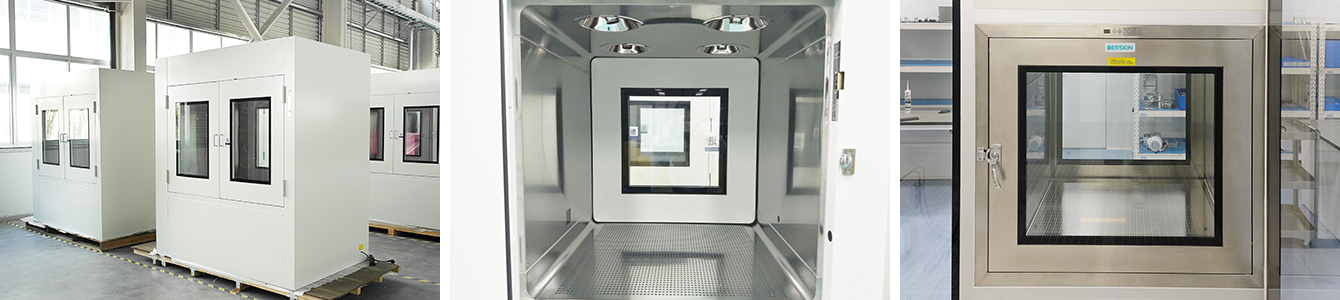

1. Standard (Non-Sterile) Pass Box
Designed for general cleanroom environments, this model ensures dust-free transfer of materials through interlocking doors and smooth stainless-steel surfaces. Ideal for transferring non-critical materials between clean zones.
2. Laminar Flow Pass Box (Sterile)
Equipped with HEPA-filtered vertical laminar airflow, providing a continuous flow of clean air inside the chamber to prevent secondary contamination. Suitable for pharmaceutical, biotechnology, and medical device applications where sterility is required.
3. Air Shower Pass Box
Combines air shower and transfer functions. High-speed HEPA-filtered air jets (25–30 m/s) remove dust particles from items before entering the clean area. Recommended for high-precision electronics and semiconductor industries.
Technical Parameters |
| Item | Specification |
| Material | SUS304 stainless steel / steel plate sprayed with SPCC, inner wall stainless steel SUS304 |
| Interlock Type | Mechanical / Electronic |
| HEPA Efficiency (Optional) | HEPA：99.99% @ 0.3μm |
| UV Lamp | 8W/18W (Optional) |
| Power Supply | 220V, 50Hz |
| Dimensions | 600*600*600/800*800*800/Customized upon request |
Applications |
Ideal for cleanrooms in pharmaceuticals, biotechnology, optical manufacturing, microelectronics, laboratories, and medical device production.
